RIX Optics STRIDE ST3 Lite Thermal Imaging Monocular
RIX Optics STRIDE ST3 Lite Thermal Imaging Monocular
RIX Optics STRIDE ST3 Lite – Ultra-Lightweight Thermal for Mobility & Awareness

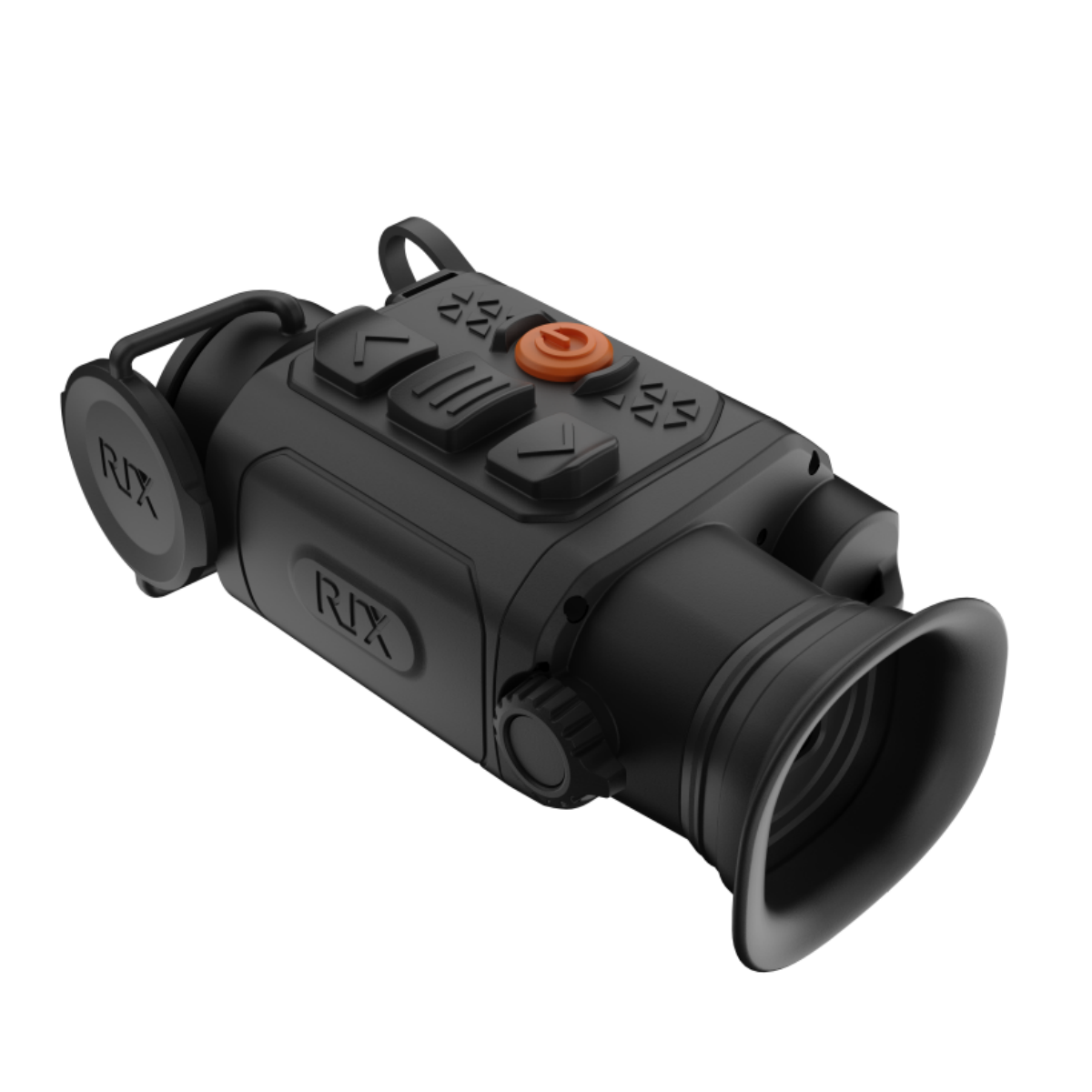

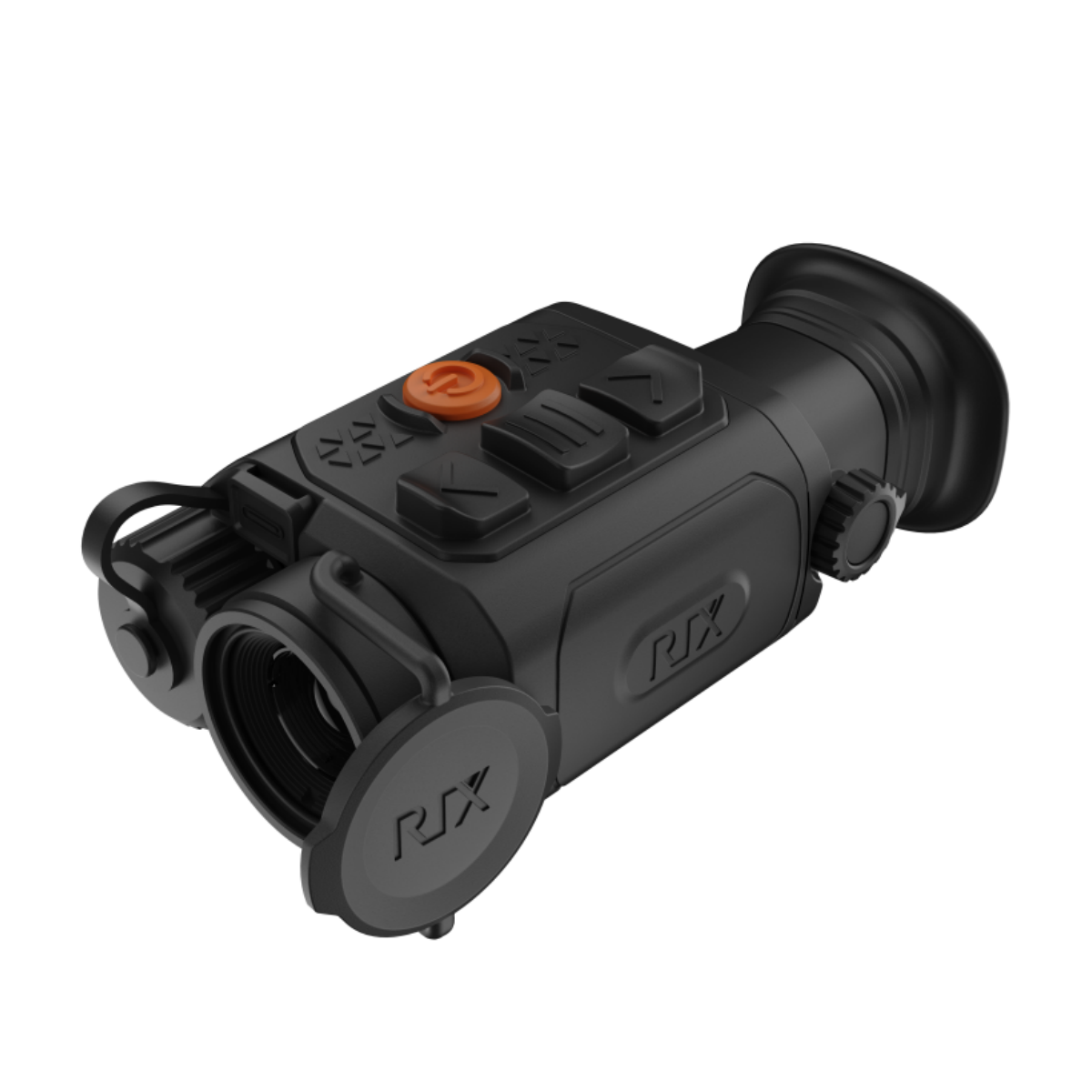

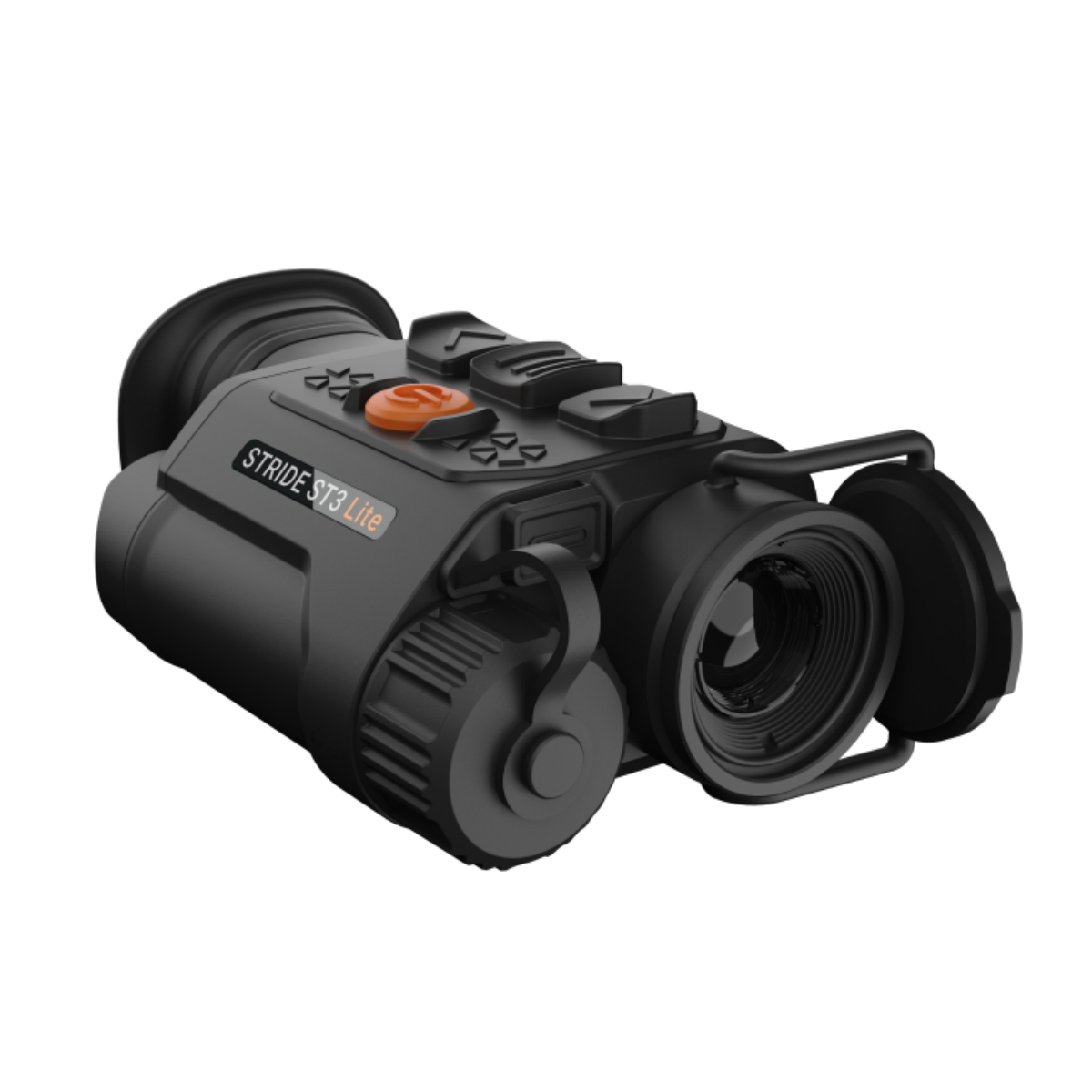

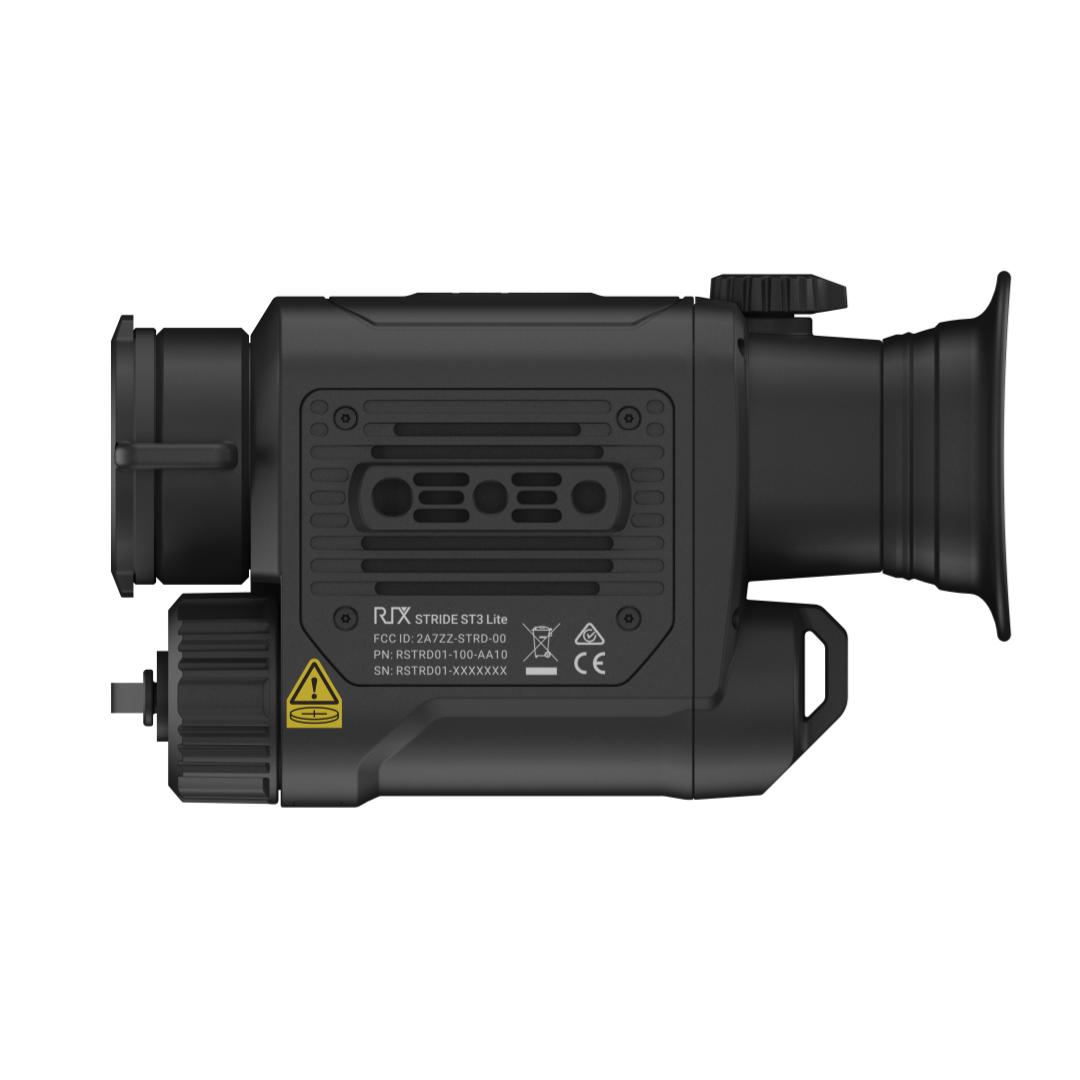

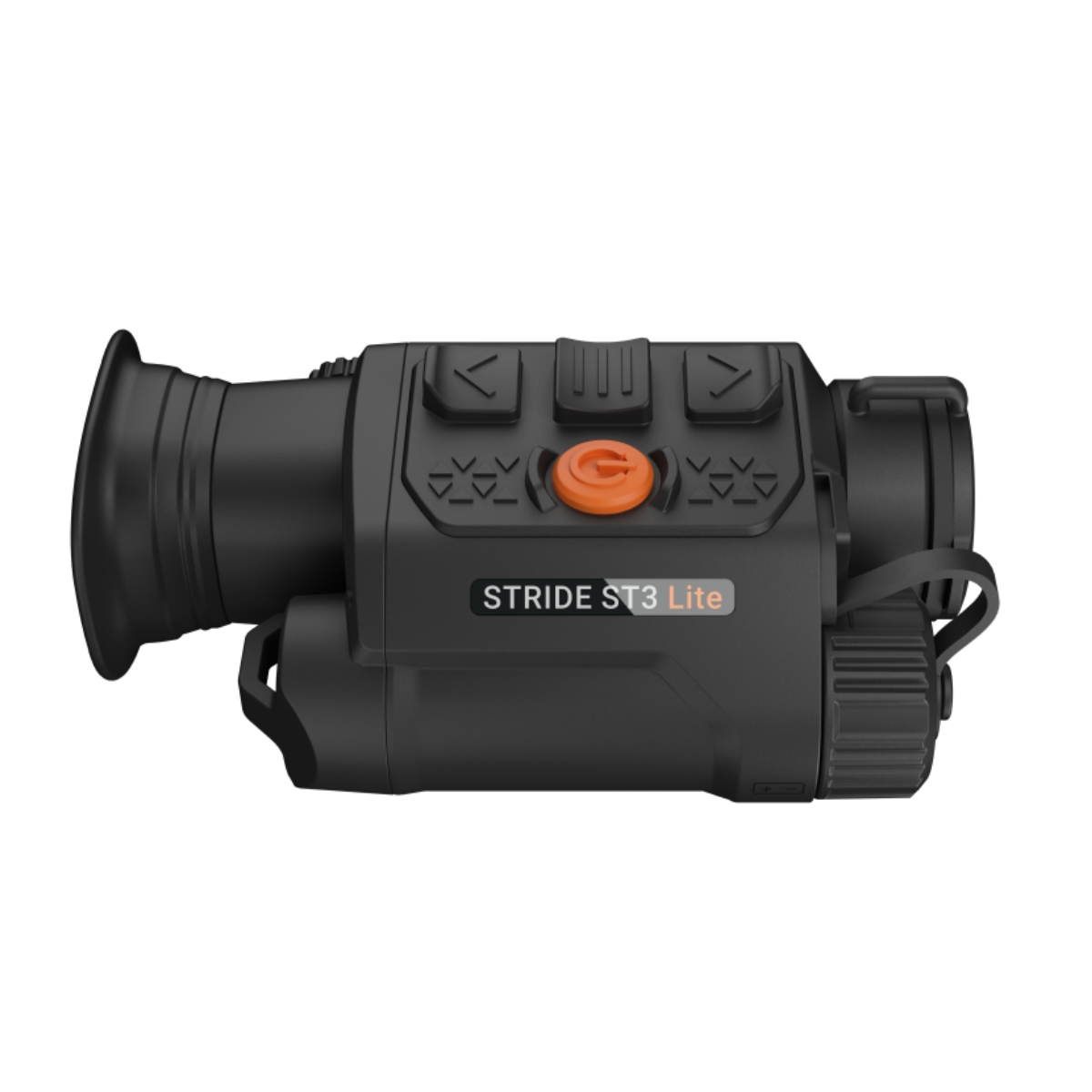

The RIX Optics STRIDE ST3 Lite Thermal Imaging Monocular is designed for users who prioritise mobility, comfort, and fast target detection. Combining a compact form factor with a high-sensitivity thermal sensor, it delivers reliable performance for scanning and situational awareness in complete darkness and challenging environments.
Engineered for both handheld and helmet-mounted use, the ST3 Lite is ideal for hunters, pest controllers, and outdoor users who need hands-free thermal capability without the weight of larger systems.
384 Thermal Sensor with High Sensitivity
At the core of the ST3 Lite is a 384×288 VOx thermal sensor, offering strong image clarity and sensitivity for its class.
- 384×288 resolution with 12µm pixel pitch
- NETD <20mK for detecting subtle temperature differences
- Smooth 50Hz refresh rate for fluid tracking
This allows for clear identification of heat signatures even in fog, darkness, or dense terrain.
Wide Field of View & True 1× Base Magnification
The ST3 Lite is optimised for scanning and movement:
- True 1× optical magnification for natural viewing
- Up to 6× magnification range
- Wide field of view for improved situational awareness
This makes it particularly effective for tracking moving targets and navigating terrain without losing depth perception.
Lightweight & Helmet-Mount Ready

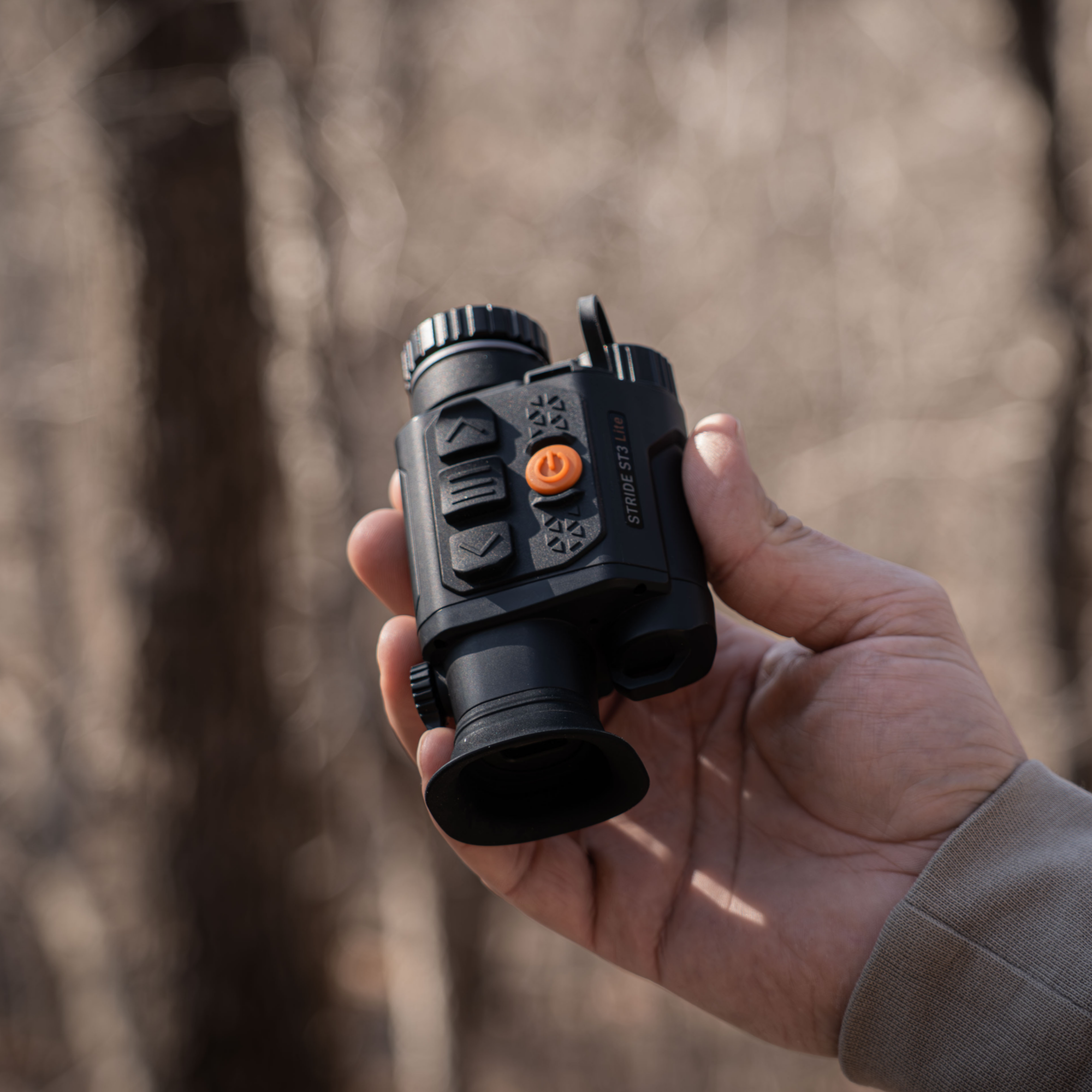

One of the standout features of the ST3 Lite is its ultra-lightweight design:
- Approx. 6.7 oz (˜190g)
- Compact size for reduced fatigue
- Suitable for helmet-mounted or handheld use
Its low weight makes it ideal for extended sessions, especially when mounted for hands-free operation.
Detection Range for Practical Field Use
- Detection range up to ~780 metres / 852 yards
- Designed for short to mid-range scanning
- Ideal for woodland, farmland, and mobile hunting setups
This provides ample range for early detection before switching to a riflescope.
OLED Display, Recording & Connectivity
- 1024×768 OLED display for clear viewing
- Built-in photo and video recording
- Wi-Fi connectivity for mobile streaming
- Internal storage for saving footage
These features allow users to capture and review thermal observations in real time.
Durable & Field-Ready Construction
- IP67-rated waterproof and dustproof design
- Operates in harsh environments
- Powered by 18650 rechargeable battery
- Designed for outdoor reliability
Key Features
- 384×288 thermal sensor with high sensitivity
- Detection range up to ~780m
- Ultra-lightweight design (~190g)
- 1× to 6× magnification
- Helmet-mounted or handheld use
- OLED display with recording capability
- Wi-Fi connectivity
- IP67-rated durability
Frequently Asked Questions (FAQ)
1. What is the detection range of the ST3 Lite?
It can detect heat signatures up to approximately 780 metres (852 yards).
2. Does it have a built-in rangefinder?
No, the ST3 Lite does not include a laser rangefinder.
3. Can it record video and photos?
Yes, it includes onboard recording and Wi-Fi connectivity for sharing footage.
4. What battery does it use?
It uses a replaceable 18650 battery, providing several hours of runtime depending on usage.
5. What makes it different from larger thermal monoculars?
Its ultra-lightweight design and true 1× magnification make it better suited for mobility and hands-free use.
6. Who is this device best suited for?
It is ideal for users needing lightweight thermal awareness rather than long-range identification.
Sensor
Resolution: 384 × 288
Pixel pitch: 12 µm
NETD: <20 mK
Frame rate: 50Hz
Optics
Objective lens: 15mm, F1.0
Magnification: 1~6×
Field of view (H×V): 17.5° × 13.1°
Digital zoom: 1~ 4×
Eye Relief: 20mm
Diopter adjustment: -5D to +5D
Detection Range: 780m / 852yd
Display
Type: OLED
Resolution: 1024 × 768
Video Recorder
Video / Photo Resolution: 1024×768
Video / Photo Format: .mp4 / .jpg
Built-in Memory: 32GB
Environmental Characteristics
Degree of Protection, IP code: IP67
Operating temperature range: -20? to +50? / -4? to 122?
Weight & Size
Dimensions: 120×71×47 mm / 4.7×2.8×1.9 in
Weight: 190 g / 0.42 lb
Connections and Compatibilities
Battery type: 18650
Wi-Fi: Support
Operation time on battery pack (at t=25?/72?): 4 h
External Power Supply: 5 V (Type-C USB)
