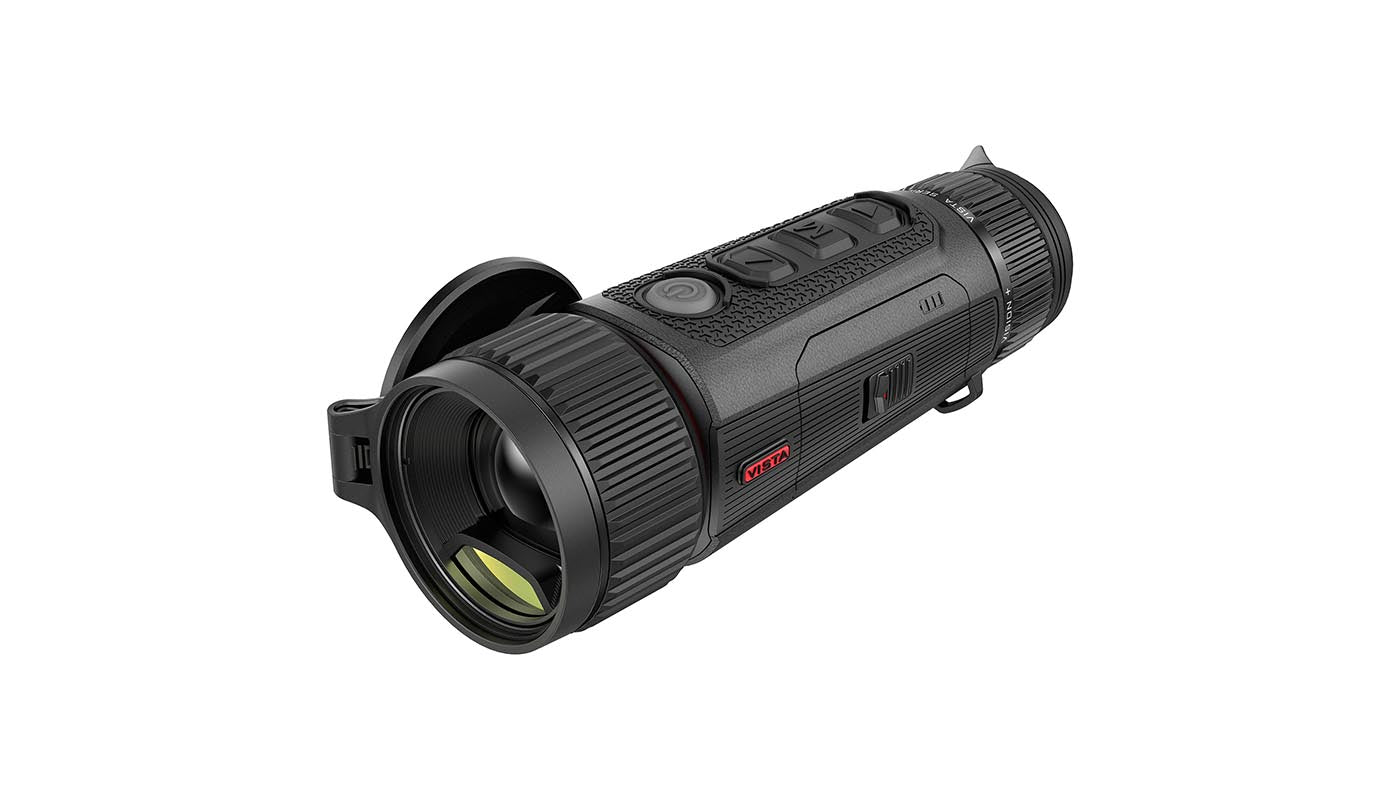

NocPix Thermal Imaging Monocular Vista Series - H35R

The NocPix Vista H35R Thermal Monocular is a high-performance thermal imaging device designed for users who demand exceptional image quality, long-range detection and precise distance measurement in a compact handheld format. Combining a highly sensitive 640×512 thermal sensor, integrated laser rangefinder and advanced Vision+ display technology, the Vista H35R delivers outstanding thermal performance for wildlife observation, land management, security monitoring and outdoor exploration.

At the heart of the Vista H35R is a premium 640×512 thermal sensor with a 12μm pixel pitch and industry-leading thermal sensitivity of ≤15mK. This advanced sensor enables the monocular to detect subtle temperature differences, producing exceptionally detailed thermal images with outstanding clarity and contrast even in difficult conditions such as fog, rain, mist and complete darkness.

The powerful 35mm F0.9 objective lens captures more thermal energy than conventional lens systems, helping deliver brighter images and enhanced target recognition at extended distances. With a detection range of up to 1800 metres and a native 3x optical magnification, the Vista H35R is ideal for scanning large areas while maintaining excellent target detail.

A built-in laser rangefinder provides accurate distance measurements up to 1200 metres, allowing users to quickly determine range without additional equipment. The advanced Vision+ viewing system features a stunning 2560×2560 AMOLED display with an 8mm exit pupil, creating an immersive viewing experience that reduces eye strain during extended observation sessions.

Designed for demanding outdoor environments, the Vista H35R features a rugged magnesium alloy housing, electronic image stabilisation, onboard photo and video recording, Wi-Fi connectivity and 64GB of internal storage. The replaceable battery system ensures extended operation in the field, making it a dependable companion for both professional and recreational users.

Key Features

• 640×512 thermal sensor with 12μm pixel pitch
• Exceptional ≤15mK NETD thermal sensitivity
• Powerful 35mm F0.9 germanium objective lens
• Integrated laser rangefinder with 1200m ranging capability
• Detection range up to 1800 metres
• Native 3x optical magnification
• Up to 28x digital zoom
• Vision+ immersive viewing system
• High-resolution 2560×2560 AMOLED display
• Smooth 60Hz refresh rate
• Electronic Image Stabilisation (EIS)
• Built-in photo and video recording with audio
• 64GB internal storage
• Wi-Fi smartphone connectivity
• Magnesium alloy housing
• IP67 waterproof and weather-resistant construction
• Replaceable rechargeable battery system
• Ideal for wildlife observation, land management, security and thermal detection

The NocPix Vista H35R combines premium thermal imaging technology, integrated rangefinding and exceptional viewing comfort in a compact and durable handheld device. Whether observing wildlife, surveying land or monitoring large areas in low-light conditions, it provides the performance and reliability serious users expect.

Frequently Asked Questions

What is the NocPix Vista H35R used for?

The Vista H35R is designed for thermal observation, wildlife monitoring, land management, search operations, security applications and long-range thermal detection. It performs effectively during both daytime and nighttime use.

What thermal sensor does the Vista H35R use?

The monocular features a 640×512 thermal sensor with a 12μm pixel pitch and thermal sensitivity of ≤15mK, delivering exceptional image detail and target recognition in challenging conditions.

How far can the Vista H35R detect heat sources?

The Vista H35R offers a maximum detection range of up to 1800 metres, making it ideal for long-range thermal observation and target detection.

Does the Vista H35R include a laser rangefinder?

Yes. The built-in laser rangefinder provides accurate distance measurements up to 1200 metres, allowing users to assess range quickly and accurately while observing.

What magnification does the Vista H35R offer?

The device features 3x native optical magnification with digital zoom capabilities extending up to 28x, providing flexibility for both wide-area scanning and detailed observation.

What is the Vision+ display system?

Vision+ combines a premium 2560×2560 AMOLED display with an 8mm exit pupil to create an immersive viewing experience with excellent detail, comfort and reduced eye fatigue.

Does the Vista H35R feature image stabilisation?

Yes. Electronic Image Stabilisation (EIS) helps reduce image movement and improves viewing comfort during handheld operation, especially at higher magnifications.

Can I record photos and videos?

Yes. The Vista H35R includes built-in photo and video recording with audio and provides 64GB of internal storage for saving images and footage directly on the device.

Is the Vista H35R waterproof?

Yes. The monocular features an IP67-rated housing that protects against rain, dust and harsh outdoor environments, making it suitable for year-round field use.

Does the Vista H35R connect to a smartphone?

Yes. Built-in Wi-Fi connectivity allows the monocular to connect to compatible mobile devices for remote viewing, media transfer and device management.

How long does the battery last?

The Vista H35R uses replaceable rechargeable battery packs and can provide approximately 5.5 hours of continuous operation per battery, with spare batteries extending field time significantly.

Why choose the NocPix Vista H35R?

The NocPix Vista H35R combines premium thermal imaging performance, exceptional thermal sensitivity, integrated laser rangefinding, long-range detection capability and an immersive AMOLED viewing system. It is an excellent choice for users seeking professional-grade thermal imaging technology in a compact and highly capable handheld monocular.
