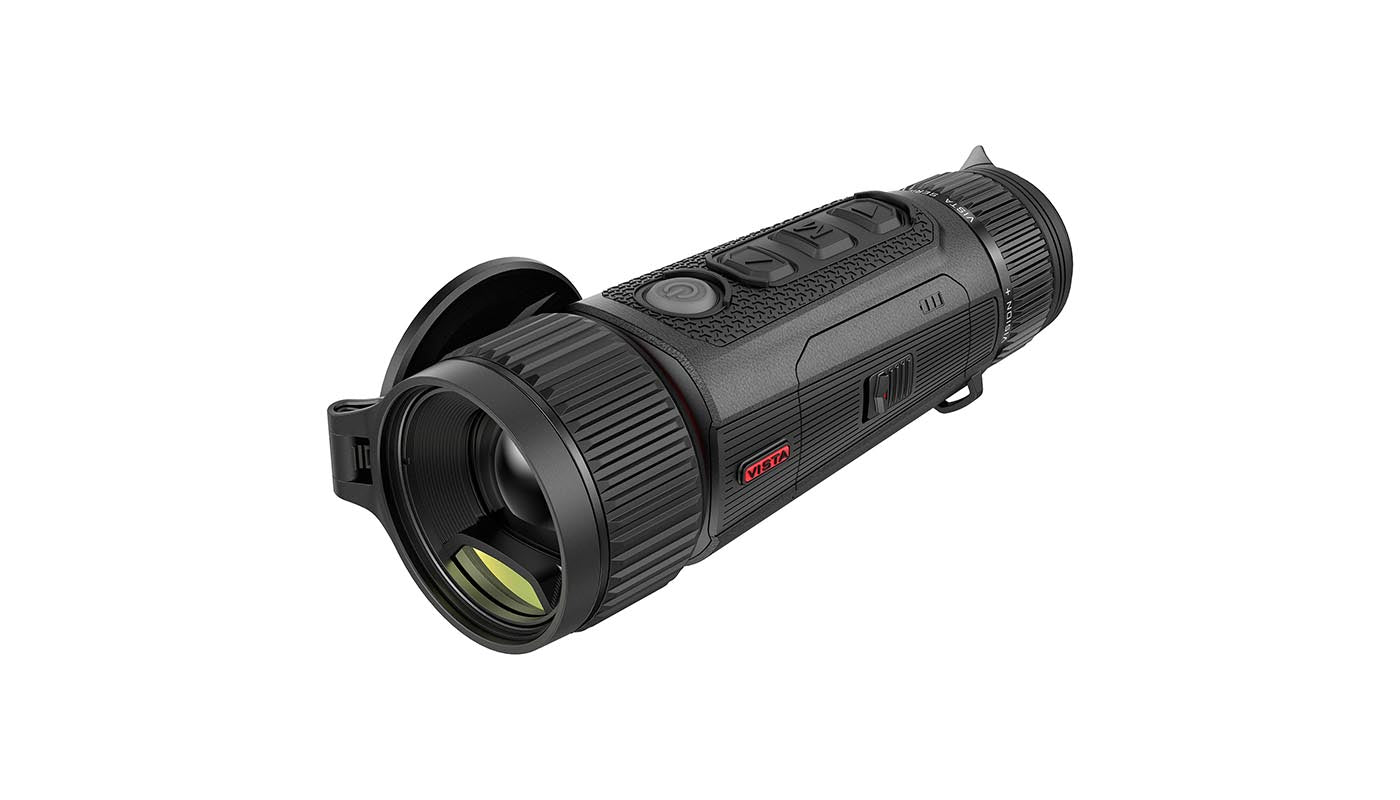

NocPix Thermal Imaging Monocular Lumi Series - H35R

The NocPix LUMI H35R Thermal Monocular combines premium thermal imaging performance, integrated laser rangefinding and exceptional portability in a compact handheld device. Designed for wildlife observation, land management, security monitoring, search operations and outdoor exploration, the LUMI H35R delivers professional-grade thermal performance while remaining small enough to fit comfortably in a pocket or pack.

At the heart of the LUMI H35R is a high-performance 640×512 thermal sensor with a 12μm pixel pitch and thermal sensitivity of ≤18mK. This advanced sensor enables the detection of subtle temperature differences, producing highly detailed thermal images with excellent contrast and target definition in darkness, fog, rain and other challenging environmental conditions.

The powerful 35mm F0.9 objective lens gathers approximately 20% more thermal information than standard F1.0 lenses, helping to generate brighter, clearer images and improved long-range performance. Combined with Reality+ AI image enhancement technology, the LUMI H35R delivers outstanding image quality and enhanced target recognition across a wide range of observation scenarios.

A key advantage of the H35R model is its integrated laser rangefinder, allowing users to measure distances quickly and accurately without carrying separate equipment. The rangefinder offers measurements out to 800 metres, making it easier to assess distances while observing wildlife, monitoring land or conducting thermal searches.

With 2.5x optical magnification, up to 20x zoom capability and a detection range of up to 1800 metres, the LUMI H35R provides an excellent balance between wide-area scanning and detailed long-range observation. Its lightweight design, replaceable 18650 battery system and IP67-rated weatherproof construction make it a dependable companion for year-round field use.

Key Features

• 640×512 thermal sensor with 12μm pixel pitch
• Exceptional ≤18mK NETD thermal sensitivity
• Integrated 800m laser rangefinder
• Powerful 35mm F0.9 objective lens
• Reality+ AI image enhancement technology
• Detection range up to 1800 metres
• 2.5x optical magnification
• Up to 20x zoom capability
• Smooth 50Hz refresh rate
• AMOLED display for clear image viewing
• Electronic Image Stabilisation (EIS)
• Built-in photo and video recording
• 32GB internal storage
• Wi-Fi smartphone connectivity
• Replaceable 18650 rechargeable battery
• Compact pocket-sized design
• IP67 waterproof and weather-resistant construction
• Ideal for wildlife observation, land management, security and search operations

The NocPix LUMI H35R is an excellent choice for users seeking a lightweight thermal monocular with premium imaging performance and integrated rangefinding. Its combination of portability, thermal sensitivity and long-range detection capability makes it one of the most versatile handheld thermal devices available.

Frequently Asked Questions

What is the NocPix LUMI H35R used for?

The LUMI H35R is designed for thermal observation, wildlife monitoring, land management, security applications, search operations and general outdoor thermal imaging. It can be used effectively during both day and night.

What thermal sensor does the LUMI H35R use?

The monocular features a 640×512 thermal sensor with a 12μm pixel pitch and thermal sensitivity of ≤18mK, providing detailed thermal imagery and excellent target recognition.

Does the LUMI H35R have a laser rangefinder?

Yes. The H35R includes an integrated laser rangefinder capable of measuring distances up to 800 metres, allowing users to obtain accurate range information while observing.

How far can the LUMI H35R detect heat sources?

The LUMI H35R offers a thermal detection range of up to 1800 metres, making it suitable for long-range observation and target detection.

What magnification does the LUMI H35R provide?

The device offers 2.5x optical magnification with zoom capability up to 20x, giving users flexibility when scanning large areas or examining distant subjects.

What are the benefits of the F0.9 lens?

The large F0.9 aperture allows more thermal energy to reach the sensor, helping produce brighter, clearer images with improved detail and target recognition.

Does the LUMI H35R feature image stabilisation?

Yes. Electronic Image Stabilisation helps reduce image movement during handheld use, improving viewing comfort and image stability at longer distances.

Can I record photos and videos?

Yes. The monocular includes onboard photo and video recording capabilities and provides 32GB of internal storage for saving footage and images.

Does the LUMI H35R connect to a smartphone?

Yes. Built-in Wi-Fi connectivity allows users to connect compatible mobile devices for remote viewing, media transfer and device management.

What battery does the LUMI H35R use?

The device is powered by a replaceable 18650 rechargeable battery, allowing quick battery changes and extended operation in the field.

Is the LUMI H35R waterproof?

Yes. The monocular features an IP67-rated housing, providing protection against rain, dust and harsh outdoor conditions.

Why choose the NocPix LUMI H35R?

The NocPix LUMI H35R combines a high-resolution thermal sensor, integrated laser rangefinder, advanced AI image processing, excellent thermal sensitivity and a compact pocket-sized design. It is an ideal solution for users seeking premium thermal performance with accurate distance measurement in a lightweight and highly portable monocular.
